Ki Data (KD)

Introduction

Ki Data (KD) is a simple and concise declarative language used to describe typed values, ranges, lists, maps, trees and grids. Although XML is an excellent format for marking up documents and embedding tags in free-form text, it can be cumbersome for expressing basic data structures. KD is designed to be readable at a glance. See the FAQ for a comparison of KD to other declarative languages.

KD is ideal for uses ranging from build files and object serialization to UI layouts and automation scripts. Its modern type system, schema, support for quantities with SI units, and high precision decimal type make it well suited for apps in areas such as finance and STEM. In addition to data structures, KD provides portable higher order types for URLs, versions, dates, times, email addresses, durations, quantities with units, ranges, optionally typed grids, coordinates, geographic coordinates, and binary data.

KD Tag

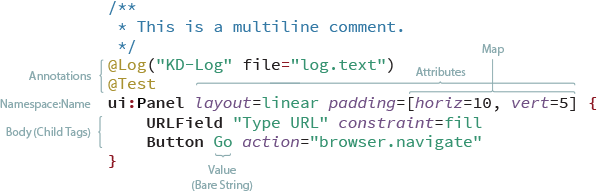

Anatomy of a Tag

Examples

Anatomy of a Tag

@Personal // I'm an annotation
favorite_books {
  book "The Hobbit" author="J. R. R. Tolkien" published=1937/9/21
  book "Dune" author="Frank Herbert" published=1965/8/1
}

requires {
  module http://kixi.io/packages/widgets version = 5.2.beta-2 .. 5.9
  module http://kixi.io/packages/kd version = 5.0.0 .. _
}

@UI(framework="HTML5")
@Test
browserBar layout="horizontal" margin=[horizontal=4 vertical=2] {
  button icon="arrow.left" action="browser.back"
  button icon="arrow.right" action="browser.forward"
  spacer 10
  webkit:urlField constraint="fill" action="browser.toURL"
  button "Go" style="simple"
  spacer 10
  menubutton {
    "New Tab" action="browser.newTab"
    "New Window" action="browser.newTab"
    separator
    "View Source" action="browser.viewSource"
  }
}

Whitespace and Lines

Newlines are significant in KD. Other whitespace is ignored. You can force a newline with a semicolon (;) and escape the end of a line with a backslash (\) to continue the tag definition on the next line.

Ki Type System (KTS)

KD uses the portable Ki Type System, which it shares with Ki Markup and Ki Script. In the example above the value of the “published” attribute is a date object, not a string. Ki’s intuitive API is available for supported platforms.

Structure of a Tag

The structure of a tag is:

  annotation(s)
  namespace:name value(s) attribute(s) {
    children
  }

A tag must have either a name or, in the case of an anonymous tag, value(s) and / or attribute(s). All other components are optional. If the name portion is omitted the tag name defaults to the empty string (“”). Names and namespaces are identifiers.

For values and child tags, order is significant and duplicates are allowed. For attributes, order is not significant and duplicates are not allowed.

Annotations appear before or above the rest of the tag. The can be a simple name such as @Test or parameterized with values and/or attributes like a tag. Annotations provide metadata for a tag which can be used for post-processing, logging, testing, etc.

Annotated Tag Examples

@Test tag "Some data"

@Test(true)
tag "Some data"

@Test(true log="output.txt")
tag "Some data"

Tag Definition Examples

A name: book
A name with a value: book "Lord of the Rings"
A name with a list: nums 3 5 7 11
A name with attributes:pets chihuahua="small" dalmation="hyper" mastiff="big"

A tree of tags (i.e. tags with children)

plants {
    trees {
        deciduous {
            elm
            oak
        }
    }
}

A matrix

myMatrix {
   4  2  5
   2  8  2
   4  2  1
}

A Tree of Nodes with Values and Attributes

folder "myFiles" color="yellow" protection=on {
    folder "my images" {
        file "myHouse.jpg" color=true date=2005/11/05
        file "myCar.jpg" color=false date=2002/01/05
    }
    folder "my documents" {
        document "resume.pdf"
    }
}

Children are tags and may be nested to an arbitrary depth. They are indented by convention but spaces and tabs are not significant in the KD language.

Tags can be listed separated by semicolons on the same line:

    tag1; tag2 "a value"; tag3 name="foo"

Anonymous Tags

Tags with no name are known as anonymous tags. They are automatically assigned the empty string (“”) as their name.

Example: An Anonymous Tag

greetings {
   "hello" language="English"
}

# If we have a handle on the "greetings" tag we can access the
# anonymous child tag by calling
#    var greeting = greetingTag.getChild(0)

Anonymous tags must have at least one value

Anonymous tags must be prefixed with a value or attribute. The addition of anonymous tags as a prefix was an addition to KD 2.0. It also allow KD to work well as a simple properties file:

Property file meeting.kd:

docname = "End of Year Meeting"
date = 2005/11/05
attendies = ["Yuki" "Bill" "Manuel"]

Output:

root {
   docname = "End of Year Meeting"
   date = 2005/11/05
   attendies = ["Yuki" "Bill" "Manuel"]
}

Access:

    // Read a KD String, File, URL or Resource
    val root = KD.read("""
        name = jose;
        age = 25
    """)

    println(root)
    println(root.getProperty("name")) // "jose"
    println(root.getProperty("age")) // 25

Identifiers

An Ki identifier starts with a unicode letter, emoji or underscore (_) followed by zero or more unicode letters, numbers, underscores (_), and dollar signs ($). Examples of valid identifiers are:

myName
_myName
😀myName
myName123
my_name
my_name_

Literal Types

KD supports 27 literal types, some of which have variants. They are:

Type	Description	Examples	Notes
String	Unicode text	“hello”, “ท้องฟ้า”, “대양”	See String
Char	Unicode character	‘A’, ‘Ж’, ‘桜’
Int	32b signed integer	123, 424_235_412, 0xFF	Optional underscores for legibility
Long	64b signed integer	123L, 424_235_412L
Float	32b signed float	123.43F, 123.43f
Double	64b signed float	123.43, 123.43D, 123d, 5.421_523	Optional underscores for legibility
Dec	128b+ signed decimal	123.44BD, 123.44bd	See notes below^*
Bool	boolean	true, false, on, off
URL	URL	https://www.nasa.gov, ldap://ds.example.com:389
Date	simple date	2005/12/05, 1592/4/8	See Date
LocalDateTime	local date & time	2021/12/05@05:21:23.53	See LocalDateTime
ZonedDateTime	DateTime w/ zone	2021/12/05@05:21:23.53+03	See ZonedDateTime
KiTZDateTime	DateTime w/ named zone	2021/12/05@05:21:23.53-US/PST	See KiTZDateTime
Duration	length of time	12:74:42, 23days:05:21:23.53, 85ms	See Duration
Version	Version descriptor	4.2.5, 5.2-beta, 2.8.5-alpha-2	See Version
Blob	Bytes encoded in base64	.blob(sdf789GSfsb2+3324sf2)	See Blob
GeoPoint	GPS coordinates	.geo(37.7749, -122.4194)	See GeoPoint
Email	Email address	kai@rockets.com, foo.noa@reptilezoo.org
Grid<T>	2D Grid	.grid(1 2 3; 40 50 60), .grid<Int>(3 6 9)	See Grid
Coordinate	Grid location	.coordinate(x=2, y=5), .coordinate(c=”A”, r=10)	See Grid & Coordinate
Quantity<U>	An amount in Units	23cm, -15mL, 2.5m³, 5.5e(-7)m	see Quantity
Range<T>	Range for comparables	2..5, 2.0..<3.5, 2.0<.._	See Range
List<T>	Ordered list	[1 2 3], [4, 5, 6], [‘a’ ‘b’ ‘c’]	Commas optional; See List
Map<K, V>	Set of key=value pairs	[name=”Rufus” color=”rust”], [‘a’=1, ‘c’=3]	Commas optional; See Map
Call	Function call	rgb(120, 140, 20, alpha=.5)	Commas optional; See Call
Snip	Embed content	.snip(../myFile.kd), .snip(“https:/kixi.io/KDExample.kd”)	See Snip
nil	Absence of a value	nil, null

^*For platforms that do not support this level of precision the implementation should provide a conformant number type.

See Ki Types for more details on the type system including super types

String

There are four types of Strings in KD. They are:

Name	Description	Examples	Notes
Simple	Single line with escapes	“Hello”, “Line1\nLine2”	‘\n’ will be escaped
Raw	Single line without escapes	@”\files\readme.md”, @”whitespace:\t\n”	’\’ and white space “as is”
Block	Multi-line with escapes	””“ One Two ”””
BlockRaw	Multi-line with no escapes	@””“ newline: \n slash: \ ”””

Notes

The white space prefix of lines in Block and BlockRaw is truncated if it matches the white space before the closing quotes (“””). Example:
Backquotes were previously allowed as literal strings. That is no longer the case. As of KD v2, backquotes will be used for regular expressions.

myTag text="""
    ABC
        def
    123
    """

The String block for “myTag” will remove two spaces from the beginning of each line and produce the string:

"""
ABC
    def
123
"""

The leading quote mark’s location is disregarded, and may appear on the same line as the attribute or below. This behavior is identical to Swift’s multi-line String literals.

Date and DateTime Literals

KD’s date and time related types are:

Date A simple date with year/month/day.
LocalDateTime A local (relative) DateTime with year/month/day@hour:minute(:second(.fractional_secong)?)?
ZonedDateTime A DateTime with a time zone (see below)
KiTZDateTime A DateTime with a named time zone (see below)

A time-of-day that isn’t attached to a date can be represented by using a Duration treated as an offset from midnight.

For LocalDateTime and ZonedDateTime single digit month of the year, day of the month, hour, second and fractional second do not require leading zero padding when parsed. Zeros will be used in the canonical representation of single digit months of the year, days of the month and hours of the day, but not seconds of the minute or fractional seconds. For example, and input of 2020/5/9@2:53:2.5 will be parsed correctly, and will output: 2020/05/09@02:53:2.5.

Fractional second accuracy goes to 9 digits (i.e. nanoseconds). You can use underscores to improve legibility. Example: 8.352_432_632 for 8.352432632 seconds.

Date

Date literals in KD are specified as year/month/day. Examples:

2005/12/05
2020/09/18
2020/9/18

LocalDateTime

Local DateTime literals don’t specify a time zone. They are to be interpreted as local (relative) time. The timezone is never set, and is to be considered relative to the time and place of the reader.

Format: yyyy/mm/dd @hh:mm(:ss(.fractional)?)?

Example	Description
2005/09/05 @05:08:03.532	Date and time with all components zero padded (canonical form)
2020/9/9 @05:08:3.532	Date and time with zero padding omitted

ZonedDateTime

ZonedDateTime literals specify a date, time and zone offset. Zones can be specified with -Z, -UTC, [+/-]offset, or -KiTZ:

Format: yyyy/mm/dd @hh:mm(:ss(.fractional)?)?(-Z | -UTC | [+/-]offset | -KiTZ)

Z and UTC without an offset are equivalent to UTC-0. The canonical representation is Z.

Example	Description
2005/12/05@05:21:23.532-Z	UTC (no offset)
2005/12/05@05:21:23.532-UTC	UTC (no offset)
2005/12/05@05:21:23.532-GMT	UTC (no offset)
2005/12/05@05:21:23.532-JP/JST	Ki Time Zone (KiTZ) `JP/JST`: Japan Standard Time - converted to offset
2005/12/05@05:21:23.532-US/PST	Ki Time Zone (KiTZ) `US/PST`: US Pacific Standard Time - converted to offset
2005/12/05@05:21:23.532-DE/CET	Ki Time Zone (KiTZ) `DE/CET`: Germany Central European Time - converted to offset
2005/12/05@05:21:23.532+2	UTC+02 offset
2005/12/05@05:21:23.532-2	UTC-02 offset
2005/12/5@05:21:23.532+2:30	UTC+02:30 offset

KiTZDateTime

KiTZDateTime literals specify a date, time and KiTZ (named time zone). Zones can be specified with -KiTZ:

Format: yyyy/mm/dd @hh:mm(:ss(.fractional)?)-KiTZ

Example	Description
2005/12/05@05:21:23.532-JP/JST	Ki Time Zone (KiTZ) `JP/JST`: Japan Standard Time
2005/12/05@05:21:23.532-US/PST	Ki Time Zone (KiTZ) `US/PST`: US Pacific Standard Time
2005/12/05@05:21:23.532-DE/CET	Ki Time Zone (KiTZ) `DE/CET`: Germany Central European Time

Ki Time Zone (KiTZ)

KiTZ provides a standardized set of timezone identifiers using the format CC/TZ where CC is the ISO 3166-1 alpha-2 country code and TZ is the standard timezone abbreviation for that region.

Common KiTZ Examples:

KiTZ ID	Country	Offset	Description
US/PST	United States	-08:00	Pacific Standard Time
US/PDT	United States	-07:00	Pacific Daylight Time
US/EST	United States	-05:00	Eastern Standard Time
US/EDT	United States	-04:00	Eastern Daylight Time
US/CST	United States	-06:00	Central Standard Time
US/MST	United States	-07:00	Mountain Standard Time
US/HST	United States	-10:00	Hawaii Standard Time
US/AKST	United States	-09:00	Alaska Standard Time
JP/JST	Japan	+09:00	Japan Standard Time
GB/GMT	United Kingdom	+00:00	Greenwich Mean Time
GB/BST	United Kingdom	+01:00	British Summer Time
DE/CET	Germany	+01:00	Central European Time
DE/CEST	Germany	+02:00	Central European Summer Time
FR/CET	France	+01:00	Central European Time
AU/AEST	Australia	+10:00	Australian Eastern Standard Time
AU/AEDT	Australia	+11:00	Australian Eastern Daylight Time
AU/AWST	Australia	+08:00	Australian Western Standard Time
CN/CST	China	+08:00	China Standard Time
IN/IST	India	+05:30	India Standard Time
KR/KST	South Korea	+09:00	Korea Standard Time
BR/BRT	Brazil	-03:00	Brasília Time
RU/MSK	Russia	+03:00	Moscow Standard Time
SG/SGT	Singapore	+08:00	Singapore Time
NZ/NZST	New Zealand	+12:00	New Zealand Standard Time
NZ/NZDT	New Zealand	+13:00	New Zealand Daylight Time

KiTZ supports over 200 timezone identifiers covering all major countries and their regional time zones. See the Ki Time Zone Specification for the complete list.

KiTZDateTime

Ki also provides a KiTZDateTime type that preserves the full timezone identity (not just the offset). This is useful when you need to maintain the semantic meaning of the timezone.

// Create with KiTZ
val dt = KiTZDateTime(2024, 3, 15, 14, 30, 0, KiTZ.US_PST)

// Access timezone information
dt.kiTZ.country      // "United States"
dt.kiTZ.countryCode  // "US"
dt.kiTZ.abbreviation // "PST"
dt.offset            // -08:00

// Convert between timezones (same instant)
val tokyo = dt.withKiTZ(KiTZ.JP_JST)  // 2024/3/16@7:30:00-JP/JST

// Format as Ki literal
dt.toString()  // "2024/3/15@14:30:00-US/PST"

Duration

Ki Duration literals represent a length of time (which may be negative.) Duration literals are useful for expressing the duration of an event, intervals, or chronological distances from a reference point.

Examples: Duration Literals

Example	Description
03:00:00 or 3h	3 hours
00:12:00 or 12min	12 minutes
00:00:42 or 42s	42 seconds
00:12:32.423	12 minutes, 32 seconds, 423 milliseconds
00:12:32.000_002_584	12 minutes, 32 seconds, 2,584 nanoseconds
30day:15:23:04.023	30 days, 15 hours, 23 mins, 4 secs, 23 milliseconds
-00:02:30	2 hours and 30 minutes ago
-2day:00:04:00	About 2 days ago
15days	15 days
hours 16h	16 hours
23min	23 minutes
2.5min # =150s	2.5 minutes
15s	15 seconds
10.25s	10.25 seconds
12ms	12 milliseconds
54664ns	54,664 nanoseconds
3days..5days	3 to 5 days (inclusive)
1h..<10h	Between 1 and 10 hours (exclusive-right)

Notes

Unless you are using a single number with units specified, hours, minutes, and seconds are required. Days and milliseconds are optional.

If the day component is included it must be suffixed with the unit day or days.

Version

The KD Version type uses a simple schema based on Semantic Versioning 2. All numeric components must be zero or positive integers.

Format: `major('.'minor('.'micro)?)?('-'qualifier(('-')?qualiferNumber)?)?`

Version Components

Component	Role	Description
major	Major feature release, possible breaking changes	positive integer
minor	Minor feature release, no breaking changes	positive integer
micro	Bug fixes and performance enhancement	positive integer
qualifier	Text label, e.g. “alpha”, “beta” or “RC”	Unicode string
qualifierNumber	A positive integer (requires a qualifier)	positive integer

Comparing Versions

For the purpose of comparison and inclusion in ranges, the sort order compares numeric components and qualifier, if present, ignoring case. Versions that have qualifiers are sorted below versions that are otherwise equal without a qualifier (e.g. 5.2-alpha is lower than 5.2). Qualifiers are sorted by alphabetical ordering (case insensitive), and finally the qualifier number, if present, is compared.

Version Examples

5.2.7
5-beta
5.2-alpha
5.2.7-rc
5-beta-1
5-beta1
5.2-alpha-3
5.2.7-rc-5

Version Convenience Methods

The Ki API provides several convenience methods for working with versions:

val v = Version.parse("5.2.3-beta-2")

v.isStable          // false (has qualifier)
v.isPreRelease      // true
v.hasQualifier      // true
v.toShortString()   // "5.2.3-beta-2"
v.toStable()        // Version(5, 2, 3)
v.incrementMajor()  // Version(6, 0, 0)
v.incrementMinor()  // Version(5, 3, 0)
v.incrementMicro()  // Version(5, 2, 4)
v.isCompatibleWith(Version.parse("5.0.0"))  // true (same major)

GeoPoint

GeoPoint represents geographic coordinates (GPS location) on Earth. It stores latitude, longitude, and an optional altitude with high precision using Dec (BigDecimal).

Format: .geo(latitude, longitude(, altitude)?)

Coordinate System

Latitude: -90.0 to +90.0 degrees (south to north)
Longitude: -180.0 to +180.0 degrees (west to east)
Altitude: Optional, in meters above WGS84 ellipsoid

GeoPoint Examples

Example	Description
.geo(37.7749, -122.4194)	San Francisco (latitude, longitude)
.geo(35.6762, 139.6503, 40.0)	Tokyo with altitude (40 meters)
.geo(-33.8688, 151.2093)	Sydney
.geo(0.0, 0.0)	Null Island (origin)
.geo(51.5074, -0.1278)	London
.geo(48.8566, 2.3522)	Paris

GeoPoint Precision

Coordinates are stored as Dec (BigDecimal) for maximum precision. The default formatting uses 6 decimal places, which provides approximately 0.1 meter accuracy.

GeoPoint in KD Tags

# Location-based data
office "Headquarters" location=.geo(37.7749, -122.4194)

# Route with waypoints
route name="City Tour" {
    waypoint "Start" coords=.geo(37.7749, -122.4194)
    waypoint "Golden Gate" coords=.geo(37.8199, -122.4783)
    waypoint "Alcatraz View" coords=.geo(37.8267, -122.4233, 15.0)
}

# Geo-fenced regions
regions {
    region "Downtown" center=.geo(37.7849, -122.4094) radius=2.5km
    region "Airport" center=.geo(37.6213, -122.3790) radius=5km
}

GeoPoint API Methods

The Ki API provides several utility methods for GeoPoint:

val sf = GeoPoint.of(37.7749, -122.4194)
val tokyo = GeoPoint.of(35.6762, 139.6503, 40.0)

// Distance calculation (Haversine formula)
val distance = sf.distanceTo(tokyo)  // Returns distance in kilometers

// Bearing calculation
val bearing = sf.bearingTo(tokyo)    // Returns bearing in degrees (0-360)

// Destination from point
val dest = sf.destination(100.0, 45.0)  // 100km at 45° bearing

// Hemisphere checks
sf.isNorthern   // true
sf.isWestern    // true
tokyo.isEastern // true

// Altitude handling
val withAlt = sf.withAltitude(100.0)
val noAlt = tokyo.withoutAltitude()

// Geographic center of multiple points
val center = GeoPoint.center(listOf(sf, tokyo))

// Bounding box
val (sw, ne) = GeoPoint.boundingBox(listOf(sf, tokyo))

// Formatting options
sf.toString()           // .geo(37.774900, -122.419400)
sf.toCompactString()    // .geo(37.7749, -122.4194)
sf.toDecimalDegrees()   // 37.774900°N, 122.419400°W
sf.toDMS()              // 37°46'29.6"N, 122°25'9.8"W

Grids and Coordinates in Ki

Grids and Coordinates are two complementary types in the Ki Type System (KTS) that provide powerful two-dimensional data structures with spreadsheet-style addressing.

Overview

Grid is a two-dimensional array of values with efficient flat array storage and O(1) access for all operations. Grids support typed and untyped variants, change listeners, and both zero-based (x, y) and spreadsheet-style (A1, B2) addressing.

Coordinate represents a position in a grid, supporting two equivalent addressing styles:

Standard notation: Zero-based (x, y) coordinates (programmer-friendly)
Sheet notation: Letter columns and one-based rows like A1, E8, AA100 (spreadsheet-friendly)

Coordinates

Creating Coordinates

Coordinates can be created using either notation style:

// Standard notation (zero-based)
val coord1 = Coordinate.standard(x = 0, y = 0)   // Top-left cell
val coord2 = Coordinate.standard(x = 4, y = 7)   // Fifth column, eighth row

// Sheet notation (letter column, one-based row)
val coord3 = Coordinate.sheet(c = "A", r = 1)    // Same as (0, 0)
val coord4 = Coordinate.sheet(c = "E", r = 8)    // Same as (4, 7)

// Both notations refer to the same positions
coord1 == coord3  // true
coord2 == coord4  // true

Parsing Coordinates

Coordinates can be parsed from strings in multiple formats:

// Sheet notation parsing
val a1 = Coordinate.parse("A1")        // (0, 0)
val e8 = Coordinate.parse("E8")        // (4, 7)
val aa100 = Coordinate.parse("AA100")  // (26, 99)

// Standard notation parsing
val origin = Coordinate.parse("0,0")   // (0, 0)
val cell = Coordinate.parse("4, 7")    // With spaces

Ki Literal Format

In KD files, coordinates use a structured literal format:

// Standard notation
.coordinate(x=0, y=0)
.coordinate(x=4, y=7)
.coordinate(x=0, y=0, z=5)    // With optional z for 3D

// Sheet notation
.coordinate(c="A", r=1)
.coordinate(c="E", r=8)
.coordinate(c="AA", r=100, z=5)

Coordinate Properties and Methods

val coord = Coordinate.parse("E8")

// Access both representations
coord.x          // 4 (zero-based column)
coord.y          // 7 (zero-based row)
coord.column     // "E" (letter column)
coord.row        // 8 (one-based row number)

// Navigation methods
coord.right(2)   // Move 2 columns right -> G8
coord.down(3)    // Move 3 rows down -> E11
coord.left(1)    // Move 1 column left -> D8
coord.up(1)      // Move 1 row up -> E7

// String representations
coord.toSheetNotation()      // "E8"
coord.toStandardNotation()   // "4,7"

Coordinate Ranges

Coordinates can form ranges for iterating over rectangular regions:

val range = Coordinate.parse("A1")..Coordinate.parse("C3")

// Iterate in reading order (left-to-right, top-to-bottom)
for (coord in range) {
    println(coord.toSheetNotation())  // A1, B1, C1, A2, B2, C2, A3, B3, C3
}

// Range properties
range.width    // 3
range.height   // 3
range.size     // 9
range.topLeft  // A1
range.bottomRight  // C3

Coordinate Examples

Example 1: Basic Coordinate Creation

// KD literal
cell .coordinate(x=2, y=3)

// Kotlin usage
val cell = Coordinate.standard(2, 3)
println(cell.toSheetNotation())  // "C4"

Example 2: Spreadsheet Reference

// KD literal
targetCell .coordinate(c="AA", r=50)

// Kotlin usage - multi-letter columns
val target = Coordinate.sheet("AA", 50)
println("x=${target.x}, y=${target.y}")  // x=26, y=49

Example 3: Coordinate with Z-axis (3D)

// KD literal for 3D position
point3d .coordinate(x=10, y=20, z=5)

// Kotlin usage
val point = Coordinate.standard(10, 20, 5)
println(point.hasZ)  // true
println(point.z)     // 5

// Starting from E8, navigate the grid
val start = Coordinate.parse("E8")
val cells = listOf(
    start,
    start.right(2),     // G8
    start.down(1),      // E9
    start.offset(2, 1)  // G9
)

Grids

Creating Grids

Grids can be created in several ways:

// Create with default value (typed grid)
val intGrid = Grid.of<Int>(10, 10, 0)       // 10x10 grid of zeros
val strGrid = Grid.of<String>(5, 5, "")     // 5x5 grid of empty strings

// Create with nulls (untyped)
val nullGrid = Grid.ofNulls<Any>(8, 8)      // 8x8 grid with nulls

// Create from rows
val dataGrid = Grid.fromRows(
    listOf(1, 2, 3),
    listOf(4, 5, 6),
    listOf(7, 8, 9)
)

// Create using a builder function
val computed = Grid.build<Int>(5, 5) { x, y -> x + y }

Ki Literal Format

In KD files, grids use a tabular format:

// Basic untyped grid
.grid(
    1    2    3
    4    5    6
    7    8    9
)

// Typed grid
.grid<Int>(
    10   20   30
    40   50   60
)

// Grid with nil (null) values
.grid(
    1    2    nil
    -    5    6
    7    8    9
)

// Note: '-' is shorthand for nil in grids

Accessing Grid Cells

Grids support multiple access styles:

val grid = Grid.of<Int>(10, 10, 0)

// Standard zero-based (x, y)
grid[2, 3] = 42
val value = grid[2, 3]

// Sheet column and one-based row
grid["C", 4] = 42       // Same cell as (2, 3)
val same = grid["C", 4]

// Sheet notation string
grid["C4"] = 42         // Same cell
val alsoSame = grid["C4"]

// Using Coordinate objects
val coord = Coordinate.parse("C4")
grid[coord] = 42
val stillSame = grid[coord]

Row and Column Access

val grid = Grid.of<Int>(5, 10, 0)

// Row views (lightweight, O(1) creation)
val row = grid.rows[3]           // Get row 3 as a view
row[2] = 99                      // Modify through the view

// Column views
val col = grid.columns["B"]      // Get column B as a view
val colData = col.toCopy()       // Get a copy of column data

// Set entire rows/columns
grid.setRow(0, listOf(1, 2, 3, 4, 5))
grid.setColumn(0, (0 until 10).map { it * 10 })

Grid Operations

val grid = Grid.of<Int>(5, 5, 0)

// Transpose (rows become columns)
val transposed = grid.transpose()

// Extract a subgrid
val subgrid = grid.subgrid(startX = 1, startY = 1, subWidth = 3, subHeight = 3)

// Map to transform all values
val doubled = grid.map { it?.times(2) }

// Find cells matching a condition
val found = grid.find { it != null && it > 100 }  // Returns Pair<Coordinate, Int?>?
val allMatches = grid.findAll { it != null && it > 50 }

// Fill operations
grid.fill(0)           // Fill entire grid
grid.fillRow(2, 99)    // Fill a specific row
grid.fillColumn(3, 77) // Fill a specific column

// Iterate with coordinates
grid.forEachIndexed { x, y, value ->
    println("($x, $y) = $value")
}

Change Listeners

Grids support change listeners for reactive programming:

val grid = Grid.of<Int>(10, 10, 0)

grid.addChangeListener(object : GridChangeListener<Int> {
    override fun onCellChanged(event: CellChangeEvent<Int>) {
        println("Cell ${event.coordinate.toSheetNotation()} changed: ${event.oldValue} -> ${event.newValue}")
    }

    override fun onRowChanged(event: RowChangeEvent<Int>) {
        println("Row ${event.rowIndex} ${event.type}")
    }

    override fun onBulkChange(event: BulkChangeEvent<Int>) {
        println("Bulk operation: ${event.type}")
    }
})

Grid Examples

Example 1: Typed Integer Grid

// KD file - explicitly typed grid
temperatures .grid<Int>(
    72   75   78   80
    70   73   76   79
    68   71   74   77
)

// Kotlin usage
val temps = Grid.fromRows(
    listOf(72, 75, 78, 80),
    listOf(70, 73, 76, 79),
    listOf(68, 71, 74, 77)
)
val maxTemp = temps.find { it != null && it > 78 }  // Returns (3, 0) -> 80

Example 2: Untyped Mixed Grid

// KD file - untyped grid with mixed values
data .grid(
    "Name"     "Age"    "Active"
    "Alice"    30       true
    "Bob"      25       false
    "Carol"    35       true
)

// Kotlin usage - untyped allows any values
val data = Grid.ofNulls<Any>(3, 4)
data[0, 0] = "Name"; data[1, 0] = "Age"; data[2, 0] = "Active"
data[0, 1] = "Alice"; data[1, 1] = 30; data[2, 1] = true
// ...

Example 3: Typed Grid with Nulls (can use `nil` or hyphen “-“)

// KD file - typed grid with null values
scores .grid<Double>(
    98.5    87.3    nil
    92.0    -       88.5
    -       95.2    91.0
)

// Kotlin usage
val scores = Grid.ofNulls<Double>(3, 3)
scores["A1"] = 98.5
scores["B1"] = 87.3
// C1 remains null
scores["A2"] = 92.0
// B2 remains null
scores["C2"] = 88.5
// etc.

Example 4: Grid with Quantity Values (Typed)

// KD file - grid of measurements
measurements .grid<Quantity>(
    5.2cm    3.1cm    4.8cm
    6.0cm    2.5cm    5.5cm
)

// Kotlin usage with quantities
val measurements = Grid.of<Quantity<*>>(3, 2, Quantity("0cm"))
measurements[0, 0] = Quantity.parse("5.2cm")
measurements[1, 0] = Quantity.parse("3.1cm")
// ...

Example 5: Building a Multiplication Table

// Programmatic grid creation
val multiplicationTable = Grid.build<Int>(10, 10) { x, y ->
    (x + 1) * (y + 1)
}

// Access: grid[3, 4] returns 20 (4 × 5)
println(multiplicationTable["D5"])  // 20

// As KD output:
// .grid<Int>(
//     1    2    3    4    5    6    7    8    9    10
//     2    4    6    8    10   12   14   16   18   20
//     3    6    9    12   15   18   21   24   27   30
//     ...
// )

Using Grids and Coordinates Together

Spreadsheet-Style Operations

// Create a budget grid
val budget = Grid.of<Double>(4, 12, 0.0)

// Set column headers conceptually (row 0)
// A=Category, B=Budget, C=Actual, D=Difference

// Set values using sheet notation
budget["B", 1] = 1000.0   // January budget
budget["C", 1] = 950.0    // January actual
budget["D", 1] = budget["B", 1]!! - budget["C", 1]!!  // Calculate difference

// Iterate over a range
val q1Range = Coordinate.parse("B1")..Coordinate.parse("D3")
var q1Total = 0.0
for (coord in q1Range) {
    budget[coord]?.let { q1Total += it }
}

Data Processing Pipeline

// Load data grid
val salesData = Grid.fromRows(
    listOf(100, 150, 200, 175),
    listOf(120, 180, 210, 190),
    listOf(90, 140, 180, 160)
)

// Find all high-performing cells
val highSales = salesData.findAll { it != null && it >= 180 }
for ((coord, value) in highSales) {
    println("High sales at ${coord.toSheetNotation()}: $value")
}

// Create a percentage grid
val maxSale = salesData.data.filterNotNull().maxOfOrNull { it as Int } ?: 1
val percentages = salesData.map { value ->
    value?.let { (it.toDouble() / maxSale * 100).toInt() }
}

Summary

Feature	Coordinate	Grid
Purpose	Position reference	2D data container
Addressing	Both (x,y) and sheet style	Uses Coordinates for access
Typing	N/A	Supports typed (`Grid<Int>`) and untyped
KD Prefix	`.coordinate(...)`	`.grid(...)` or `.grid<Type>(...)`
Nulls	Has `z` as optional	Cells can be null (`nil`)
Iteration	Via ranges	`forEach`, `forEachIndexed`, `map`
Events	N/A	Change listeners

Together, Grids and Coordinates provide a complete solution for working with two-dimensional data in Ki, whether you’re building spreadsheet applications, game boards, data tables, or any other grid-based structure.

Quantity

A Quantity is an amount of a Unit. KD supports all SI base axes and several popular derived axes:

SI Base Axes

Time (via Duration)
Length
Mass
Temperature (Celsius & Kelvin)
SubstanceAmount
Current
Luminosity

SI Derived Axes

Area
Volume
Speed
Density

Other derived axes are likely to be added in future versions.

You specify them using standard SI symbols. There is an exception for Liter (L). Due to a conflict with the “L” suffix for long literals, liter is written with “LT”, “ℓ”, or “mL”/”mℓ” for milliliters (e.g. 5LT, 5ℓ, 500mL).

By default Quantities use the high precision Dec type for their value. You can override this behavior by adding a :i, :L, :d or :f suffix after the unit type for Int, Long, Double or Float.

Basic Quantity Examples

Example	Description
23cm	23 centimeters (Dec)
51.4m³ or 51.4m3	51.4 cubic meters
97ℓ or 97LT	97 liters
1000kg or 1_000kg	1000 kilograms
142.24km:d	142.24 kilometers as Double
500mℓ or 500mL	500 milliliters
25°C or 25dC	25 degrees Celsius
300K	300 Kelvin

Scientific Notation for Quantities

Ki supports two forms of scientific notation for quantities. Standard + and - operators cannot be used in exponents because they conflict with arithmetic operators in Ki Script (KS) and other expression contexts.

Option 1: Parentheses Style

Use parentheses around the exponent to include a sign:

Example	Value	Description
5.5e(8)km	5.5 × 10⁸ km	550 million kilometers
5.5e(-7)m	5.5 × 10⁻⁷ m	550 nanometers
9.109e(-31)kg	9.109 × 10⁻³¹ kg	Electron mass
6.022e(23)mol	6.022 × 10²³ mol	Avogadro’s number
1.496e(8)km	1.496 × 10⁸ km	Earth to Sun distance

Option 2: Letter Style (n/p)

Use n for negative exponent, p for positive (p is optional for positive):

Example	Value	Description
5.5e8km	5.5 × 10⁸ km	Positive (no letter needed)
5.5ep8km	5.5 × 10⁸ km	Explicit positive with ‘p’
5.5en7m	5.5 × 10⁻⁷ m	Negative with ‘n’
9.109en31kg	9.109 × 10⁻³¹ kg	Electron mass

Scientific Notation with Type Specifiers

Both styles can be combined with type specifiers:

5e(8)km:d     # Double
5en7m:f       # Float
022e(23)mol:L # Long (will be converted)

Supported Units

Length Units

Symbol	Name	Factor
nm	nanometer	10⁻⁹ m
µm	micrometer	10⁻⁶ m
mm	millimeter	10⁻³ m
cm	centimeter	10⁻² m
dm	decimeter	10⁻¹ m
m	meter	1 (base)
km	kilometer	10³ m

Area Units

Symbol	Name	Factor
nm², nm2	square nanometer	10⁻¹⁸ m²
mm², mm2	square millimeter	10⁻⁶ m²
cm², cm2	square centimeter	10⁻⁴ m²
m², m2	square meter	1 (base)
km², km2	square kilometer	10⁶ m²

Volume Units

Symbol	Name	Factor
nm³, nm3	cubic nanometer	10⁻²⁷ m³
mm³, mm3	cubic millimeter	10⁻⁹ m³
cm³, cm3	cubic centimeter	10⁻⁶ m³
m³, m3	cubic meter	1 (base)
km³, km3	cubic kilometer	10⁹ m³
mℓ, mL	milliliter	10⁻⁶ m³
ℓ, LT	liter	10⁻³ m³

Mass Units

Symbol	Name	Factor
ng	nanogram	10⁻⁹ g
mg	milligram	10⁻³ g
cg	centigram	10⁻² g
g	gram	1
kg	kilogram	10³ g (base for SI)

Temperature Units

Symbol	Name	Offset
K	Kelvin	0 (base)
°C, dC	Celsius	273.15

Time Units

Symbol	Name	Factor
s	second	1 (base)
min	minute	60 s
h	hour	3600 s
day	day	86400 s

Speed Units

Symbol	Name	Factor
kph	kilometers per hour	1 (base)
mps	meters per second	0.277778 kph

Density Units

Symbol	Name	Factor
kgpm³, kgpm3	kg per cubic meter	1 (base)

Other Units

Symbol	Name	Description
mol	mole	Substance amount
A	ampere	Electric current
cd	candela	Luminous intensity
pH	pH	Dimensionless (acidity)

Quantity Conversion

Quantities can be converted between compatible units:

val distance = Quantity.parse("1.496e(8)km")  // Earth to Sun
val inMeters = distance convertTo Unit.m      // Convert to meters

val temp = Quantity.parse("25°C")
val inKelvin = temp convertTo Unit.K          // 298.15K

// Arithmetic operations
val length1 = Quantity(2, Unit.cm)
val length2 = Quantity(5, Unit.mm)
println(length1 - length2)  // 15mm (uses smaller unit)

Range

Ranges can be created for all comparable KTS types (numbers, chars, Strings, etc.) They can be inclusive or exclusive on either side. They can also be open on either side. Here are some examples:

Example	Description
1..5	`Range<Int>` 1 - 5 (inclusive)
5.0<..<15.0	`Range<Double>` > 5, < 15 (exclusive)
2<..17	`Range<Int>` > 2, <= 17 (exclusive-left)
6..<12	`Range<Int>` >= 6, < 12, (exclusive-right)
6.._	`Range<Int>` >= 6 (open-right)
_..100	`Range<Int>` <= 100 or less (open-left)
8<.._	`Range<Int>` > 8, (exclusive-left, open-right)
‘a’..’f’	`Range<Char>` >= ‘a’, <=’f’ (inclusive)
7.2.5-beta-2.._	`Range<Version>` >= 7.2.5-beta-2 (inclusive, open-right)
4h..<10h	`Range<Duration>` >= 4 hours, < 10 hours, (exclusive-right)
7mm..12cm	`Range<Quantity>` >= 7mm, <= 12cm, (inclusive)

Range API Methods

The Ki API provides utility methods for working with ranges:

val range = Range.inclusive(1, 10)

5 in range              // true (containment check)
range.min               // 1
range.max               // 10
range.reversed          // false
range.isOpen            // false
range.isClosed          // true

// Range operations
val other = Range.inclusive(5, 15)
range.overlaps(other)   // true
range.intersect(other)  // Range(5, 10)
range.clamp(20)         // 10 (clamps value to range)

// Factory methods
Range.inclusive(1, 10)  // 1..10
Range.exclusive(1, 10)  // 1<..<10
Range.openRight(5)      // 5.._
Range.openLeft(5)       // _..5

List

KD Lists are written in square brackets with space and/or comma separated values. Examples:

[1, 2, 3, 4] # List of Ints
[5 6 7 8] # Commas are optional
['a' 'b' 'c'] # List of Chars
[[1 2] [3 4]] # List of Lists
friends ["Pedro", "Rika", "Naisha"] type="closest" # Tag with a List value and an attribute

Map

KD maps are written in square brackets with entry pairs separated by =. Examples:

[Spanish="hola", Fijian="Bula"] # Keys using naked (quoteless) strings
[Spanish="hola" Fijian="Bula"] # Commas are optional.
['a'="Ant", 'b'="Bird"] # Keys and values can be any KD type, including Lists and Maps.

Blob

KTS Blob literals are base64 encodings of byte arrays. KD supports both standard (canonical) Base64 encoding as specified in RFC 4648 §4 and URL-safe Base64 as specified in RFC 4648 §5.

Format: .blob(encoding_chars)

Base64 Variants

Variant	Characters	Usage
Standard	A-Z, a-z, 0-9, +, /	Default output format
URL-safe	A-Z, a-z, 0-9, -, _	Safe for URLs and filenames

When parsing, Ki auto-detects which variant is being used. When outputting, standard Base64 is used by default.

Blob Examples

key .blob(sdf789GSfsb2+3324sf2) name="my key"

# URL-safe Base64 (auto-detected when parsing)
token .blob(sdf789GSfsb2-3324sf2_abc)

image .blob(
    R3df789GSfsb2edfSFSDF
    uikuikk2349GSfsb2edfS
    vFSDFR3df789GSfsb2edf
)

upload from="ikayzo.org" data=.blob(
    R3df789GSfsb2edfSFSDF
    uikuikk2349GSfsb2edfS
    vFSDFR3df789GSfsb2edf
)

# Empty blob
empty .blob()

When Blob is output from a KD tag or via Ki.formatBlob(literal), it will chunk the data into lines for readability when the encoded string exceeds 30 characters. This output is parsable by the KD parser and Ki.parseBlob(literal).

Blob API Methods

// Create from bytes
val blob = Blob.of(byteArrayOf(0x48, 0x65, 0x6C, 0x6C, 0x6F))

// Create from string (UTF-8)
val blob = Blob.of("Hello World!")

// Parse Ki literal
val blob = Blob.parse(".blob(SGVsbG8gV29ybGQh)")

// Access data
val bytes = blob.toByteArray()
val size = blob.size
val text = blob.decodeToString()

// Output formats
blob.toBase64()         // Standard Base64
blob.toBase64UrlSafe()  // URL-safe Base64
blob.toString()         // Ki literal with standard Base64
blob.toStringUrlSafe()  // Ki literal with URL-safe Base64

Call

A KD Call is a data representations of a function invocation. It supports positional and named parameters. Examples:

rgb(200, 100, 120)
rgb(200 100 120) # Commas are optional.
rgb(200, 100, 120, alpha=.5) # positional and named parameters

Snip

This update adds new types and literals. Most notably, the .snip(path) literal. Snip allows KD files to import content from local files or URLs (with security precautions). The imported file’s root will replace the .snip(path) with the imported content.

We also improved the exception handling and classes. Finally, we ensured there are no known bugs. Between Ki.Core-JVM and Ki.KD-JVM, which are the reference libraries for all compliant implementations, we have over 1,400 unit and integration tests.

A Snip is a reference to an external KD document that gets expanded inline during parsing.

Snips enable modular KD documents by allowing one document to include content from another. When a KD document containing a snip is parsed, the referenced file is loaded and its root tag is inserted in place of the snip.

Ki Literal Format

.snip(path/to/file)              # Relative path (auto-appends .kd)
.snip(../components/button)      # Parent directory reference
.snip("path with spaces/file")   # Quoted for special characters
.snip(config.yaml)               # Explicit extension (no .kd added)
.snip(https://example.com/comp)  # URL reference
.snip(../toggles, expand=true)   # Insert only children of root tag

Path Resolution

Paths are always relative to the containing KD file
Use forward slashes (/) regardless of platform
The .kd extension is auto-appended if no extension is present
Absolute paths are supported but may pose security risks

Unquoted Path Characters

Unquoted paths may only contain:

Alphanumeric characters (a-z, A-Z, 0-9)
Forward slash (/)
Hyphen (-)
Underscore (_)
Period (.)
Colon (:) - for URL schemes like https://

Paths containing spaces, parentheses, or other special characters must be quoted.

Expand Mode

By default, the entire root tag from the snipped file is inserted. With expand=true, only the children of the root tag are inserted (the root tag itself is discarded).

Example

File: main.kd

app {
    header {
        .snip(components/navbar)
    }
    content {
        .snip(pages/home, expand=true)
    }
}

File: components/navbar.kd

navbar {
    logo "MyApp"
    menu { item "Home"; item "About" }
}

Result after expansion:

app {
    header {
        navbar {
            logo "MyApp"
            menu { item "Home"; item "About" }
        }
    }
    content {
        # Children of pages/home.kd root inserted here
    }
}

Comments

KD supports single line comments beginning with # or // and C-style multiline comments that begin with /* and end with */. Multiline comments can be nested. Examples:

myInts 1 2 /* 3 */ 4 # note: this list will contain 1, 2 and 4

tag1 "fee"
/*
tag2 "fi"
tag3 "fo"
*/
tag4 "fum" // We are done!

KD Files

KD files (any file ending with the extension .kd) should always be encoded using UTF-8. The use of unicode escaping (such as the \uxxxx format used by Java and C#) is supported but not required. Non ASCII characters should be entered directly using a UTF-8 capable editor.

ASCII is transparently encoded in UTF8, so ASCII files can be used if only ASCII characters are required.

Example KD File

# a tag having only a name
my_tag

# three tags acting as name value pairs
given_name "Akiko"
family_name "Johnson"
height 68
daily_reading 1h..2h # 1 to 2 hours

# a tag with a value list
person "Akiko" "Johnson" 68 kids=["Yuka" "Naoki"]

# a tag with attributes
person first_name="Akiko" last_name="Johnson" height=68

# a tag with values and attributes
person Akiko Johnson height=60 # Values are using quoteless strings

# a tag with attributes using namespaces
person name:first-name="Akiko" name:last-name="Johnson"

# a tag with values, attributes, namespaces, and children
my_namespace:person "Akiko" "Johnson" dimensions:height=68 {
    son "Nouhiro" "Johnson"
    daughter "Sabrina" "Johnson" location="Italy" {
        hobbies "swimming" "surfing"
        languages English Italian
        books_per_week 2..4 // range from 2 to 4
        smoker false
    }
}

# -----------------------------------------------------------------

# a log entry
#     note - this tag has two values (date_time and string) and an
#            attribute (error)
entry 2005/11/23@10:14:23.253-GMT "Something bad happened" error=true

# a long line
mylist "something" "another" true "shoe" 2002/12/13 "rock" \
    "morestuff" "sink" "penny" 12:15:23.425

# GPS location example
office "San Francisco HQ" location=.geo(37.7749, -122.4194)

# Scientific notation quantity
star_distance 4.24e(13)km name="Proxima Centauri"

# Electron mass in scientific notation
particle mass=9.109en31kg name="electron"

# anonymous tag examples

files {
    "/folder1/file.txt"
    "/file2.txt"
}

# To retrieve the files as a list of strings using Java
#
#     var files = tag.getChild("files").getChildrenValues();
#
# We use the empty string ("") because the files tag has two children, each of
# which are anonymous tags (values with no name.)  These tags are assigned
# the empty string ("").

Uses

Because of its terse syntax and type inference capabilities, KD is ideally suited to applications such as:

Configuration Files
Build Files
Property Files
Object Serialization
Rules engines
Automation scripts
UI Layouts (forms, etc.)
Log files (formatting and parsing)
Geographic/Location Data
Scientific Data with Units

KD was designed to be language agnostic. Ki.KD-JVM is the reference implementation. It is written in Kotlin with annotations that make it easy to access in Java and other JVM languages such as Scala and JRuby. The Swift implementation is in beta and work has started on Go lang.

References

The following languages were researched during the development of KD for the purpose of defining base types and literal formats:

Declarative Languages	General Purpose
XML	Swift
JSON	Kotlin
RDF	Java
PYX (link from Pat Niemeyer)	C#
YAML	Python
OGML	Ruby
SDL (KD’s predecessor)	TypeScript
	Dart
	Go

Ki Data (KD)

Introduction

Whitespace and Lines

Ki Type System (KTS)

Structure of a Tag

Anonymous Tags

Identifiers

Literal Types

String

Date and DateTime Literals

Date

LocalDateTime

ZonedDateTime

KiTZDateTime

Ki Time Zone (KiTZ)

KiTZDateTime

Duration

Examples: Duration Literals

Version

Version Components

Comparing Versions

Version Examples

Version Convenience Methods

GeoPoint

Coordinate System

GeoPoint Examples

GeoPoint Precision

GeoPoint in KD Tags

GeoPoint API Methods

Grids and Coordinates in Ki

Overview

Coordinates

Creating Coordinates

Parsing Coordinates

Ki Literal Format

Coordinate Properties and Methods

Coordinate Ranges

Coordinate Examples

Example 1: Basic Coordinate Creation

Example 2: Spreadsheet Reference

Example 3: Coordinate with Z-axis (3D)

Example 4: Coordinate Navigation

Grids

Creating Grids

Ki Literal Format

Accessing Grid Cells

Row and Column Access

Grid Operations

Change Listeners

Grid Examples

Example 1: Typed Integer Grid

Example 2: Untyped Mixed Grid

Example 3: Typed Grid with Nulls (can use nil or hyphen “-“)

Example 4: Grid with Quantity Values (Typed)

Example 5: Building a Multiplication Table

Using Grids and Coordinates Together

Spreadsheet-Style Operations

Data Processing Pipeline

Summary

Quantity

Basic Quantity Examples

Scientific Notation for Quantities

Option 1: Parentheses Style

Option 2: Letter Style (n/p)

Scientific Notation with Type Specifiers

Supported Units

Quantity Conversion

Range

Range API Methods

List

Map

Blob

Base64 Variants

Blob Examples

Blob API Methods

Call

Snip

Ki Literal Format

Path Resolution

Unquoted Path Characters

Example 3: Typed Grid with Nulls (can use `nil` or hyphen “-“)
